Electrical Characteristics

Power Supply: Battery

Standby time: up to 180 days

Built-in Battery Capacity: 10000mAh Lithium battery

Environmental Characteristics

Operating Temperature Range: -20°C ~ 70°C

Storage Temperature Range: -40°C ~ 85°C

Operating Humidity Range: 10%-95% RH (non-condensing)

Communication Characteristics

Communication Frequency Bands: Supports 2G: 850/900/1800/1900MHz

SIM Card: 4G Micro SIM Card

Communication Antenna: Built-in

GPS/BD Positioning Characteristics

Positioning: GPS/BDS/GLONASS

Cold Start Time: Average 32 seconds

Hot Start Time: Average 1 second

Sensitivity (Tracking): -162 dBm

Location Antenna: Built-in

External Interface

Charging: DC5V/3A

Appearance

Dimensions: 108mm * 86mm * 47.6mm

Casing Material: Aluminium alloy

Main Unit Weight: 760g

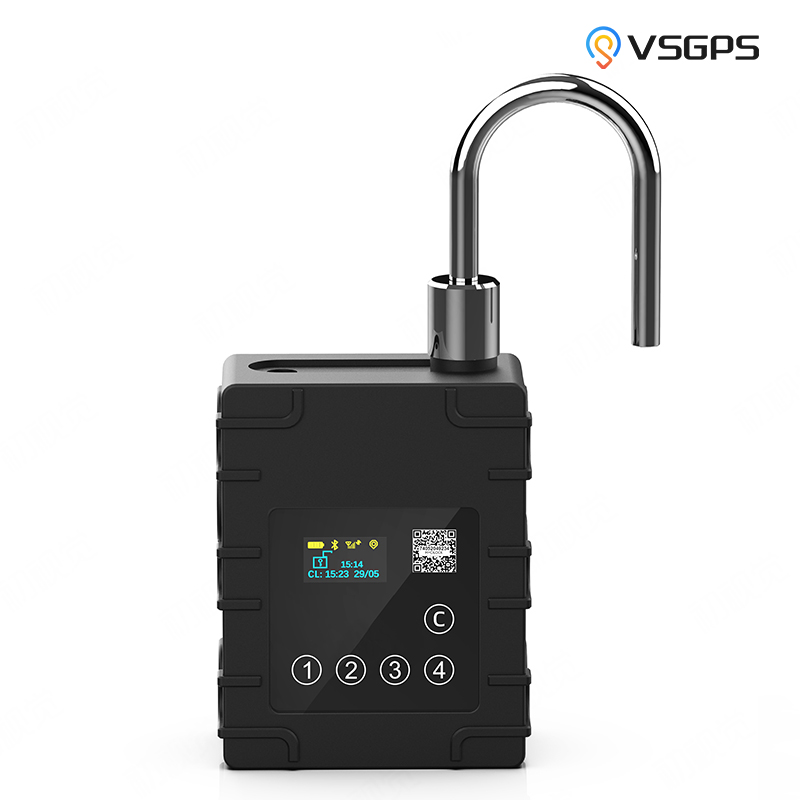

The VSGPS Logistic GPS Tracker offers precise real-time tracking with GPS, Beidou, and LBS positioning. Designed for fleet management and cargo security, it supports functions such as real-time status detecting and alarming. With a durable Aluminium alloy shell and wide voltage range (9V–95V), it performs reliably even in extreme environments. Easy to install and highly efficient, this tracker helps businesses enhance operational control and safety. Welcome to contact VSGPS for bulk orders and customized tracking solutions.
