Electrical Characteristics
en enPower Supply: Battery
Operating Voltage Range: DC 9V-45V
Operating Current: 12V/40mA
Sleep Current: 12V/10mA
Internal Battery Capacity: 180 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C to 75°C
Storage Temperature Range: -30°C to 80°C
Operating Humidity Range: 5%-85% RH (non-condensing)
Communication Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Positioning Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Internal
External Interface
USB: 5V Charging Port
Specifications
Dimensions: 53mm * 47mm * 23mm
Casing Material: ABS Plastic
Main Unit Weight: 45g
The CW08-SA Vehicle OBD Tracker combines GPS and Beidou systems for superior tracking accuracy. Its high-sensitivity AT6558R chip ensures stable and fast signal reception even in complex environments. With AGPS support, positioning time is reduced, allowing immediate location tracking and data updates.
Upgrade your fleet tracking efficiency with the CW08-SA Vehicle OBD Tracker. Designed for 4G full network connectivity, it ensures accurate real-time GPS/Beidou positioning and reliable performance across vehicles. Contact Xindu today for OEM and bulk orders!
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V - 95V
Operating Current: 12V/40mA Average
Sleep Current: 12V/<10mA
Built-in Battery Capacity: 140 mAh (3.7V polymer rechargeable battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C - 75°C
Storage Temperature Range: -30°C - 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: EC25/EC200/UC200
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Internal
Network Type: CAT 1/CAT M/NB
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBM
Positioning Antenna: Built-in
External Interfaces
ACC Detection: One ACC detection port
Appearance
Dimensions: 90.6mm * 57mm * 20mm
Casing Material: ABS Plastic
IP Rating: IP67
Main Unit Weight: 68g

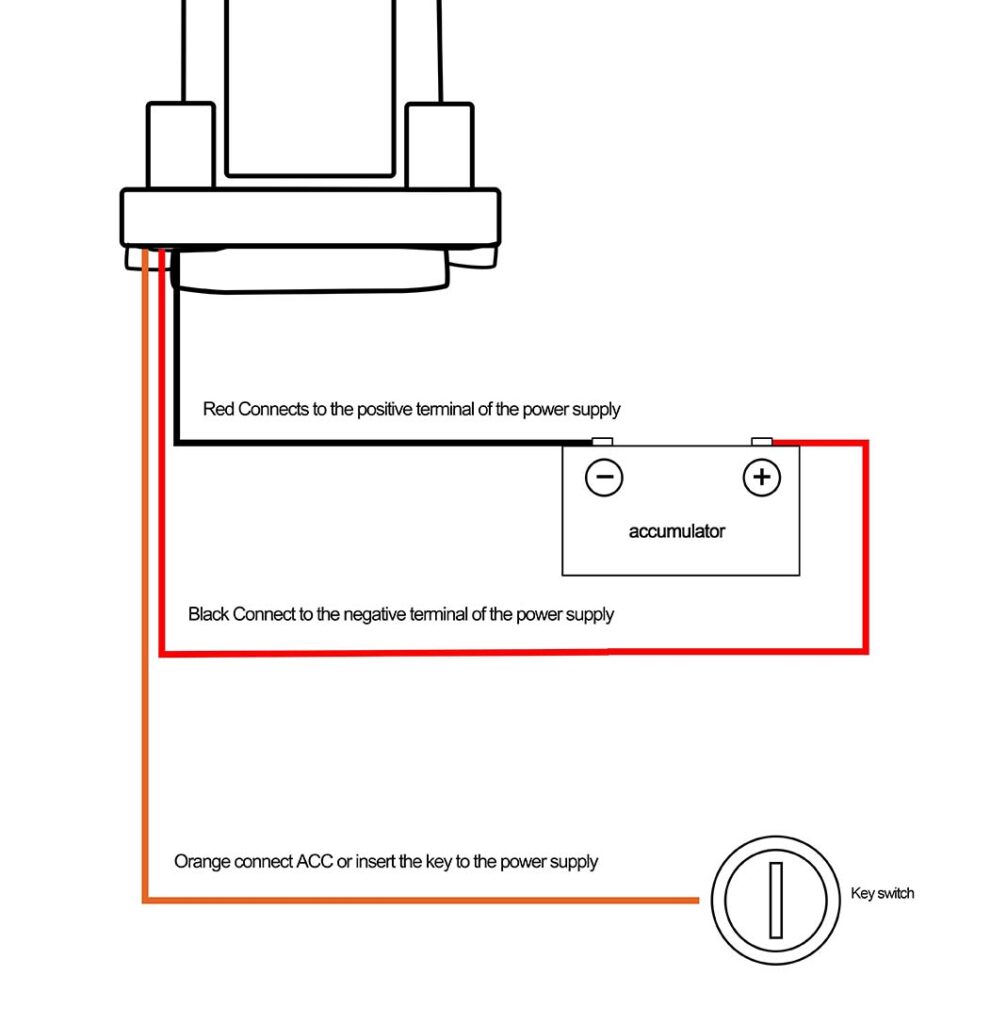

The 3-pin vehicle GPS tracker by VSGPS delivers precise and stable positioning for cars, fleets, and logistics systems. Designed for long-term performance, it combines high sensitivity with efficient power management. Its wide voltage range of DC 9V–95V ensures compatibility with various vehicle types, making it ideal for brand clients seeking reliable tracking solutions.
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V - 95V
Operating Current: 12V/Average 35mA
Sleep Current: 12V/<10mA
Built-in Battery Capacity: 80mAh (3.7V polymer battery)
Environmental Characteristics
Operating Temperature Range: -30°C - 75°C
Storage Temperature Range: -30°C - 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: QUECTEL MC25
Communication Frequency Bands: Supports 2G: 850/900/1800/1900MHz
SIM Card: Micro SIM Card
Communication Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
I/O Ports: Low-Power Output (1 for fuel and power failure)
High-Power Input (1 for ACC detection)
Appearance
Dimensions: 77mm * 28mm * 15mm
Casing Material: ABS Plastic
Main Unit Weight: 32g
The VSGPS 4-Pin GPS Tracker offers precise real-time tracking with GPS, Beidou, and LBS positioning. Designed for fleet management and vehicle security, it supports functions such as power failure alarms, overspeed alerts, and remote fuel or power cutoff. With a durable ABS shell and wide voltage range (9V–95V), it performs reliably even in extreme environments. Easy to install and highly efficient, this tracker helps businesses enhance operational control and safety. Welcome to contact VSGPS for bulk orders and customized tracking solutions.
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V - 95V
Operating Current: 12V/35mA
Sleep Current: 12V/5mA
Internal Battery Capacity: 60 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C - 75°C
Storage Temperature Range: -30°C - 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: A7670 E/SA
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Built-in
Network Speed: CAT 1
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
Oil/Power Cutoff: Can be connected to an external relay
ACC Detection: One ACC detection port
SOS Button: Can connect an external SOS button
Appearance
Dimensions: 79mm x 33mm x 16mm
Casing Material: ABS Plastic
Main Unit Weight: 40g
VSGPS 8-pin GPS locator delivers reliable and precise vehicle tracking with 4G full network support and GPS/Beidou dual-mode positioning. Designed for commercial and fleet use, it offers smart features like ACC detection, remote fuel and power cut-off, and real-time alarms for vibration, overspeed, and low voltage. With a wide voltage range of 9V–95V and a durable ABS housing, it ensures stable operation under harsh conditions. Contact us today for OEM/ODM customization and bulk orders to enhance your fleet safety and management efficiency.
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V - 95V
Operating Current: 12V/35mA
Sleep Current: 12V/5mA
Internal Battery Capacity: 60 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C - 75°C
Storage Temperature Range: -30°C - 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: A7670 E/SA
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Built-in
Network Speed: CAT 1
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
Oil/Power Cutoff: Can be connected to an external relay
Appearance
Dimensions: 79mm x 33mm x 16mm
Casing Material: ABS Plastic
Main Unit Weight: 40g
The VSGPS 4-Pin GPS Tracker for Fleets delivers professional-grade vehicle tracking with 4G full network access and multiple positioning systems, including GPS, Beidou, AGPS, and LBS. Built for fleet operations, it ensures stable performance with a wide voltage input of 9V–95V, making it compatible with various vehicle types. Ideal for logistics, car rental, and fleet businesses seeking safety, efficiency, and intelligent management, the VSGPS 4-Pin Tracker represents the next level of precision tracking. Contact us today to customize your fleet tracking solution and enhance operational visibility.
Electrical Characteristics
Power Supply: Battery 4G GPS tracker manufacturer
Operating Voltage Range: DC 9V - 95V
Operating Current: 12V/35mA
Sleep Current: 12V/5mA
Internal Battery Capacity: 60 mAh (3.7V polymer battery, Optional)
Environmental Characteristics
Operating Temperature Range: -20°C - 75°C
Storage Temperature Range: -30°C - 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: A7670 E/SA
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Built-in
Network Speed: CAT 1
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
Oil/Power Cutoff: Can be connected to an external relay
ACC Detection: One ACC detection port
SOS Button: Can connect an external SOS button
Appearance
Dimensions: 79mm x 33mm x 16mm for 4G GPS tracker manufacturer
Casing Material: ABS Plastic
Main Unit Weight: 40g
VSGPS is a professional 4G vehicle GPS tracker manufacturer dedicated to reliable and intelligent vehicle tracking solutions. Our 4G vehicle tracker supports GPS, Beidou, AGPS, and LBS positioning for precise monitoring across networks. With features such as remote oil and power cut-off, vibration and overspeed alarms, and wide voltage compatibility, it ensures safe and efficient fleet management. Suitable for cars, trucks, and electric vehicles, it provides accurate data and long-term stability. Contact us today to customize your 4G GPS tracking solution for your business.
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V - 95V
Operating Current: 12V/35mA
Sleep Current: 12V/5mA
Internal Battery Capacity: 60 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C - 75°C
Storage Temperature Range: -30°C - 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: A7670 E/SA
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Built-in
Network Speed: CAT 1
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
Oil/Power Cutoff: Can be connected to an external relay
Appearance
Dimensions: 79mm x 33mm x 16mm
Casing Material: ABS Plastic
Main Unit Weight: 40g
VSGPS 4-pin GPS locator is designed for reliable vehicle tracking across 4G and 2G networks. It features GPS, Beidou, AGPS, and LBS precise positioning, along with smart detection and remote control functions. The device supports wide voltage input and multiple alarms to ensure safety and performance. Compact, durable, and easy to install, it’s the ideal choice for fleet management and individual vehicle monitoring. Contact us today to customize your GPS tracking solution and experience dependable real-time positioning with VSGPS technology.
