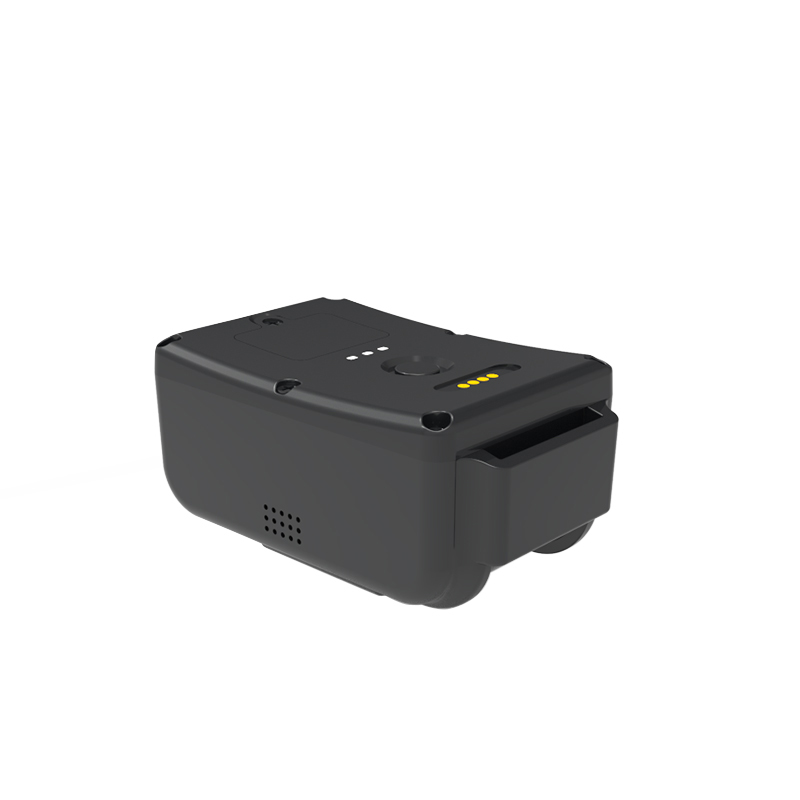

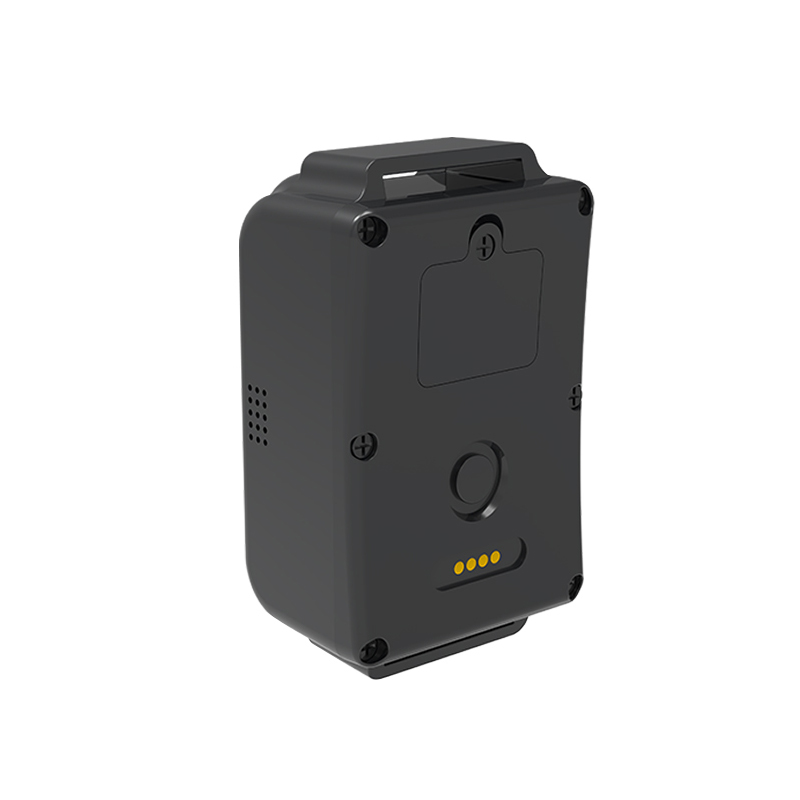

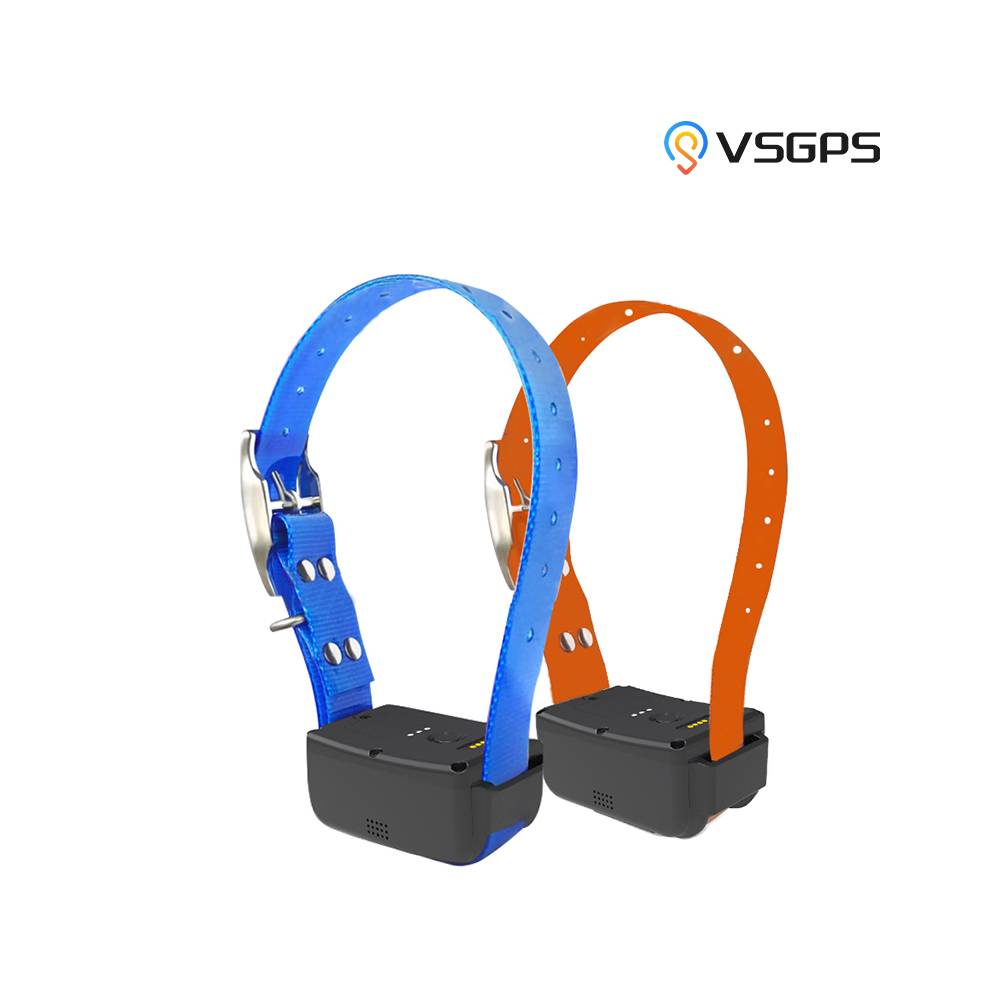

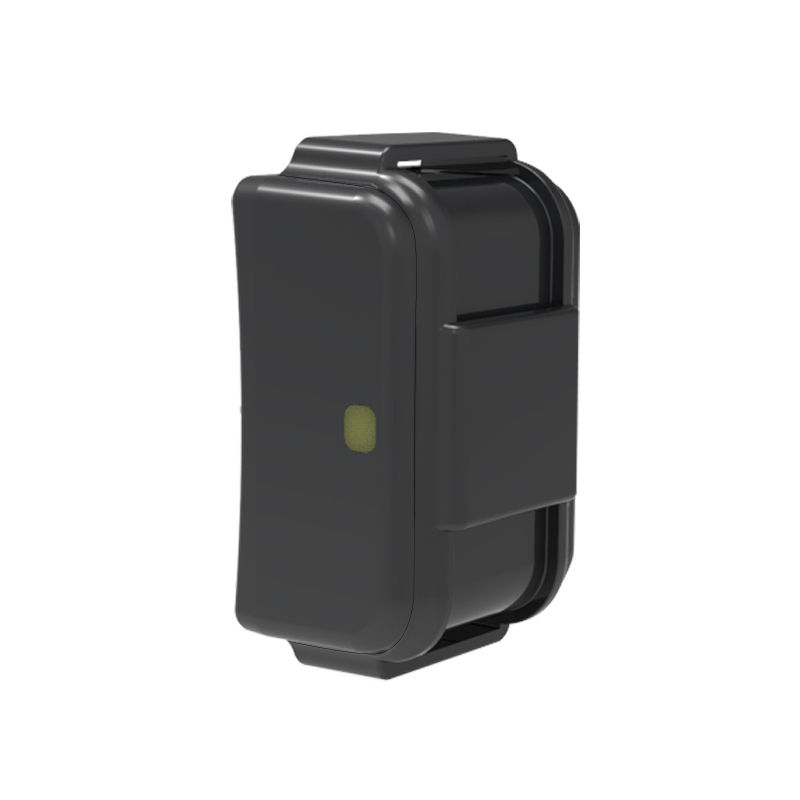

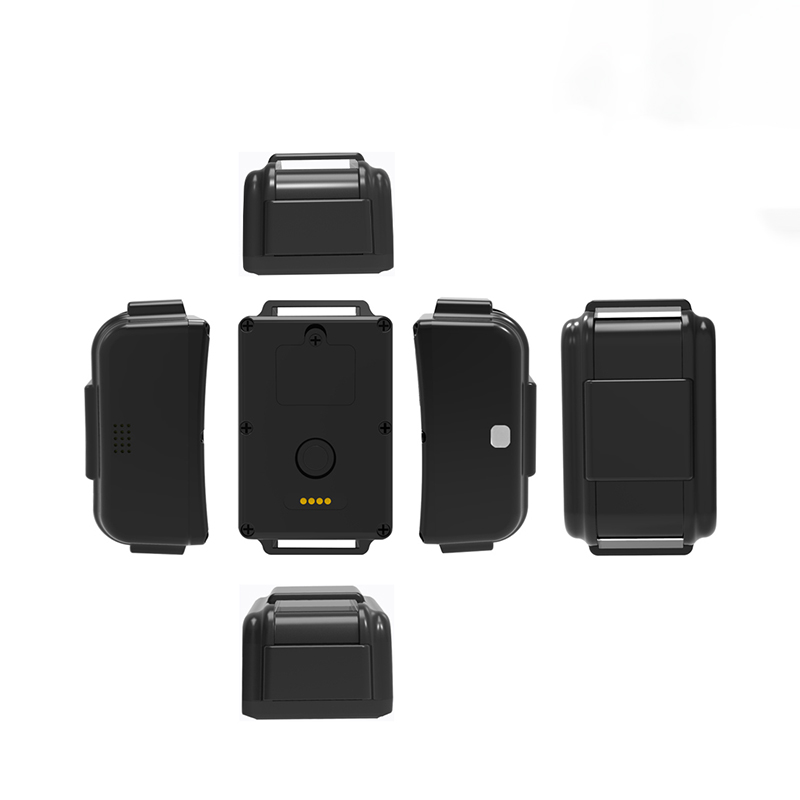

P01 Animal GPS Tracker
- 4G full-network smart terminal.
- Precise positioning, accuracy up to 5 meters.
- GPS/Beidou/LBS positioning.
- Features: Real-time positioning, vibration alarm, light and buzzer tracking, roll call tracking, etc.
P01 Animal GPS Tracker
- 4G full-network smart terminal.
- Precise positioning, accuracy up to 5 meters.
- GPS/Beidou/LBS positioning.
- Features: Real-time positioning, vibration alarm, light and buzzer tracking, roll call tracking, etc.
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V-45V
Operating Current: 12V/40mA
Sleep Current: 12V/10mA
Internal Battery Capacity: 180 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C to 75°C
Storage Temperature Range: -30°C to 80°C
Operating Humidity Range: 5%-85% RH (non-condensing)
Communication Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Positioning Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Internal
External Interface
USB: 5V Charging Port
Specifications
Dimensions: 53mm * 47mm * 23mm
Casing Material: ABS Plastic
Main Unit Weight: 45g
The P01 GPS tracking devices for animals from Xindu offers accurate real-time positioning with dual GPS and Beidou support. It maintains precision within 5 meters, ensuring reliable location monitoring for livestock, pets, and wildlife. This tracker is ideal for professional breeders, farms, and animal research organizations.
Stay connected with your animals anytime, anywhere with the Xindu P01 Animal GPS Tracker. Designed for durability and precision, it delivers real-time location updates, vibration alerts, and long standby performance. Contact us now for bulk customization and OEM services!
APPLICATIONS
Caravan Positioning
Livestock Management
Pets Care
