Supports 4G full network access.
Supports GPS/Beidou/AGPS/LBS precise positioning.
Features include: ACC detection, DC detection, remote oil and power cut-off, power outage alarm, low voltage alarm, vibration alarm, overspeed alarm, etc.
Supports a wide voltage input range of 9V – 95V.
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Supports 4G full network access.
Supports GPS/Beidou/AGPS/LBS precise positioning.
Features include: ACC detection, DC detection, remote oil and power cut-off, power outage alarm, low voltage alarm, vibration alarm, overspeed alarm, etc.
Supports a wide voltage input range of 9V – 95V.
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V – 95V
Operating Current: 12V/35mA
Sleep Current: 12V/5mA
Internal Battery Capacity: 60 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C – 75°C
Storage Temperature Range: -30°C – 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: A7670 E/SA
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Built-in
Network Speed: CAT 1
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
Oil/Power Cutoff: Can be connected to an external relay
Appearance

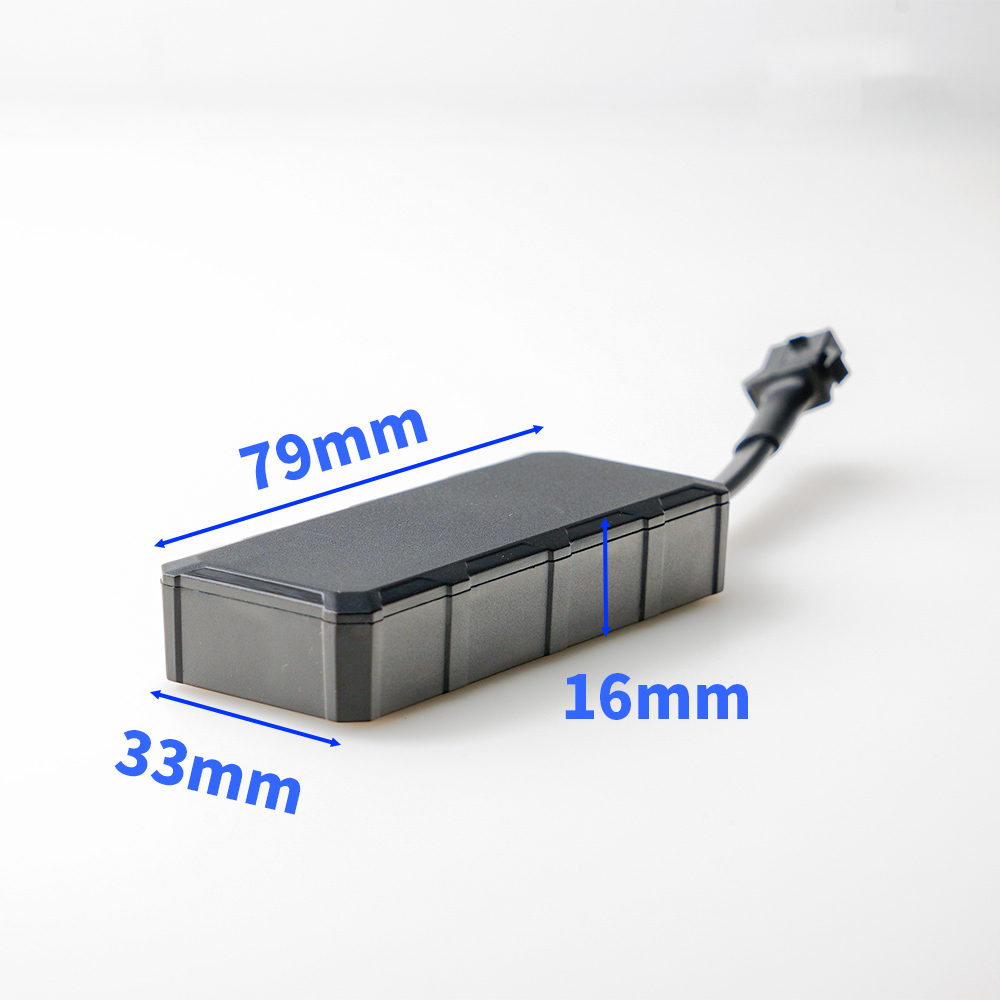

Dimensions: 79mm x 33mm x 16mm
Casing Material: ABS Plastic
Main Unit Weight: 40g

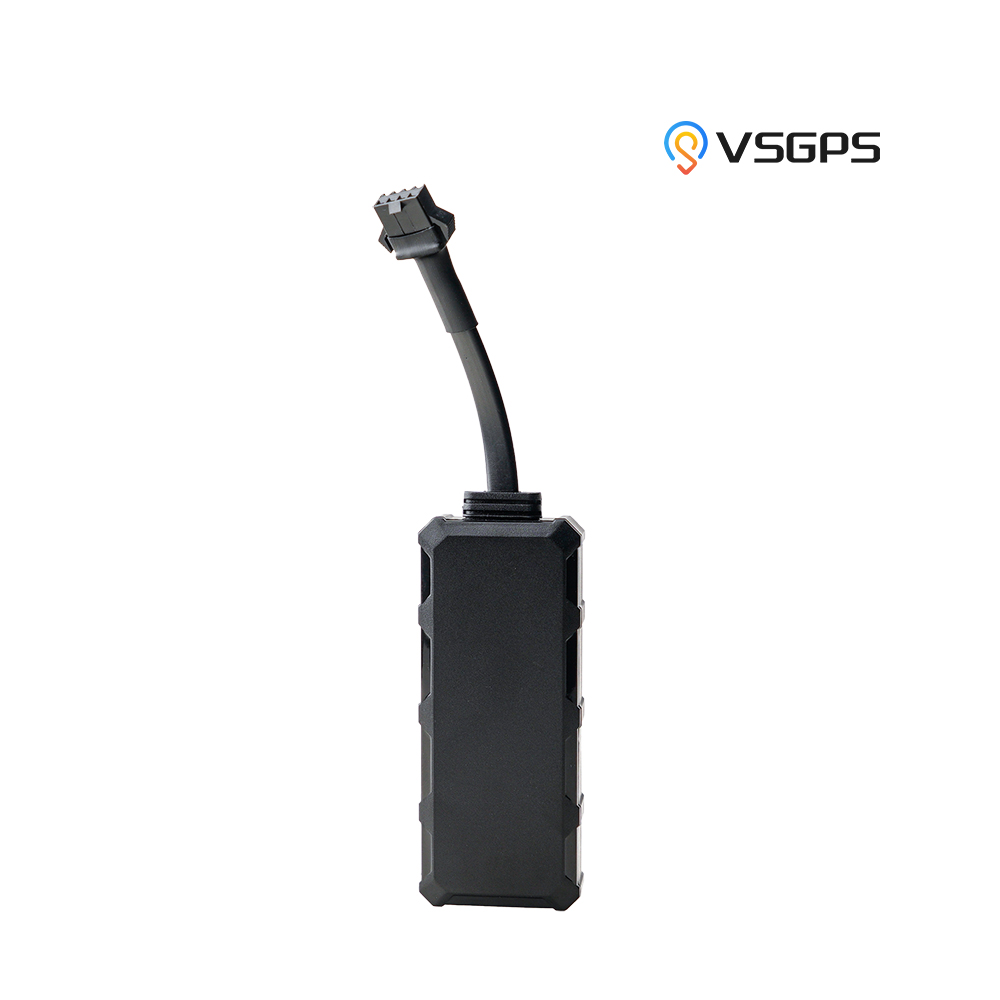

The VSGPS 4-Pin GPS Tracker for Fleets delivers professional-grade vehicle tracking with 4G full network access and multiple positioning systems, including GPS, Beidou, AGPS, and LBS. Built for fleet operations, it ensures stable performance with a wide voltage input of 9V–95V, making it compatible with various vehicle types. Ideal for logistics, car rental, and fleet businesses seeking safety, efficiency, and intelligent management, the VSGPS 4-Pin Tracker represents the next level of precision tracking. Contact us today to customize your fleet tracking solution and enhance operational visibility.
APPLICATIONS
Fleet Management
Car Locating
Racing Tracking
