Precise positioning, with an accuracy of up to 5 meters.
Triple-mode positioning: GPS, Beidou, and LBS.
Functions include: DC detection, power failure alarm, remote fuel and power cutoff, ACC detection, overspeed alarm, vibration alarm, low voltage alarm, displacement alarm, and ACC illegal start alarm.
Supports voltage range of 9V to 95V.
GSM:B2/B3/B5/B8
Precise positioning, with an accuracy of up to 5 meters.
Triple-mode positioning: GPS, Beidou, and LBS.
Functions include: DC detection, power failure alarm, remote fuel and power cutoff, ACC detection, overspeed alarm, vibration alarm, low voltage alarm, displacement alarm, and ACC illegal start alarm.
Supports voltage range of 9V to 95V.
GSM:B2/B3/B5/B8
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V – 95V
Operating Current: 12V/Average 35mA
Sleep Current: 12V/<10mA
Built-in Battery Capacity: 80mAh (3.7V polymer battery)
Environmental Characteristics
Operating Temperature Range: -30°C – 75°C
Storage Temperature Range: -30°C – 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: QUECTEL MC25
Communication Frequency Bands: Supports 2G: 850/900/1800/1900MHz
SIM Card: Micro SIM Card
Communication Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Built-in
External Interface
I/O Ports: Low-Power Output (1 for fuel and power failure)
High-Power Input (1 for ACC detection)
Appearance
Dimensions: 77mm * 28mm * 15mm
Casing Material: ABS Plastic
Main Unit Weight: 32g

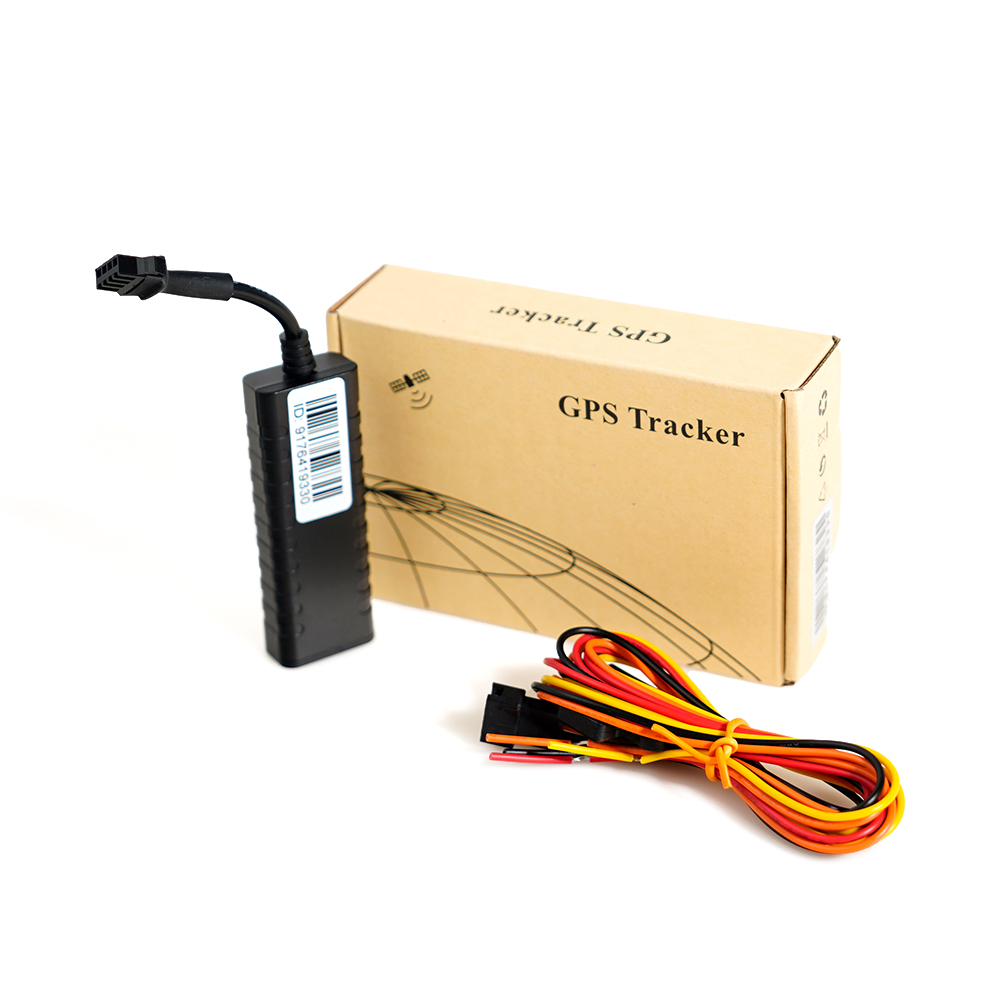

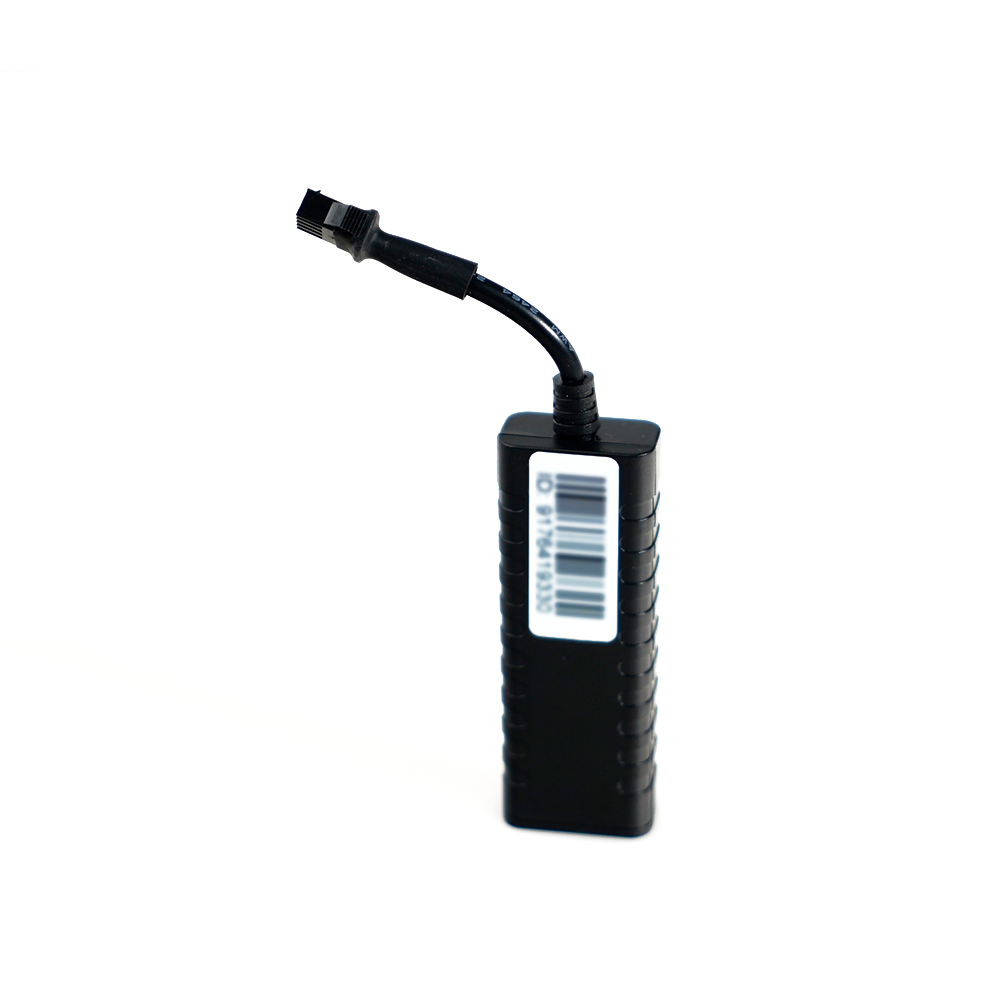

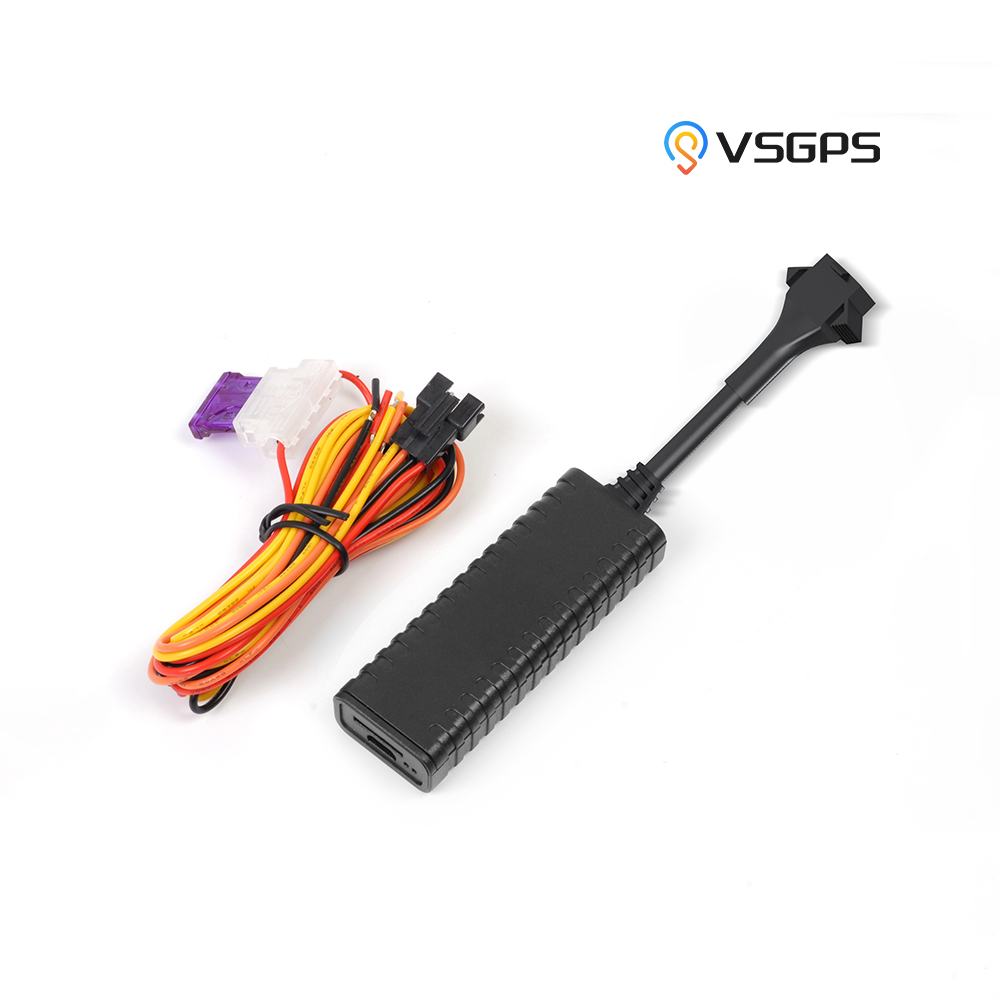

The VSGPS 4-Pin GPS Tracker offers precise real-time tracking with GPS, Beidou, and LBS positioning. Designed for fleet management and vehicle security, it supports functions such as power failure alarms, overspeed alerts, and remote fuel or power cutoff. With a durable ABS shell and wide voltage range (9V–95V), it performs reliably even in extreme environments. Easy to install and highly efficient, this tracker helps businesses enhance operational control and safety. Welcome to contact VSGPS for bulk orders and customized tracking solutions.
APPLICATIONS
Fleet Management
Motorcycle Tracking
Car Locating
