4G all-network compatible in-vehicle smart terminal.
Precise positioning, up to 5 meters accuracy.
GPS/Beidou/AGPS/LBS precise positioning.
Features: vibration alarm, overspeed alarm, displacement alarm, low battery alarm, etc.

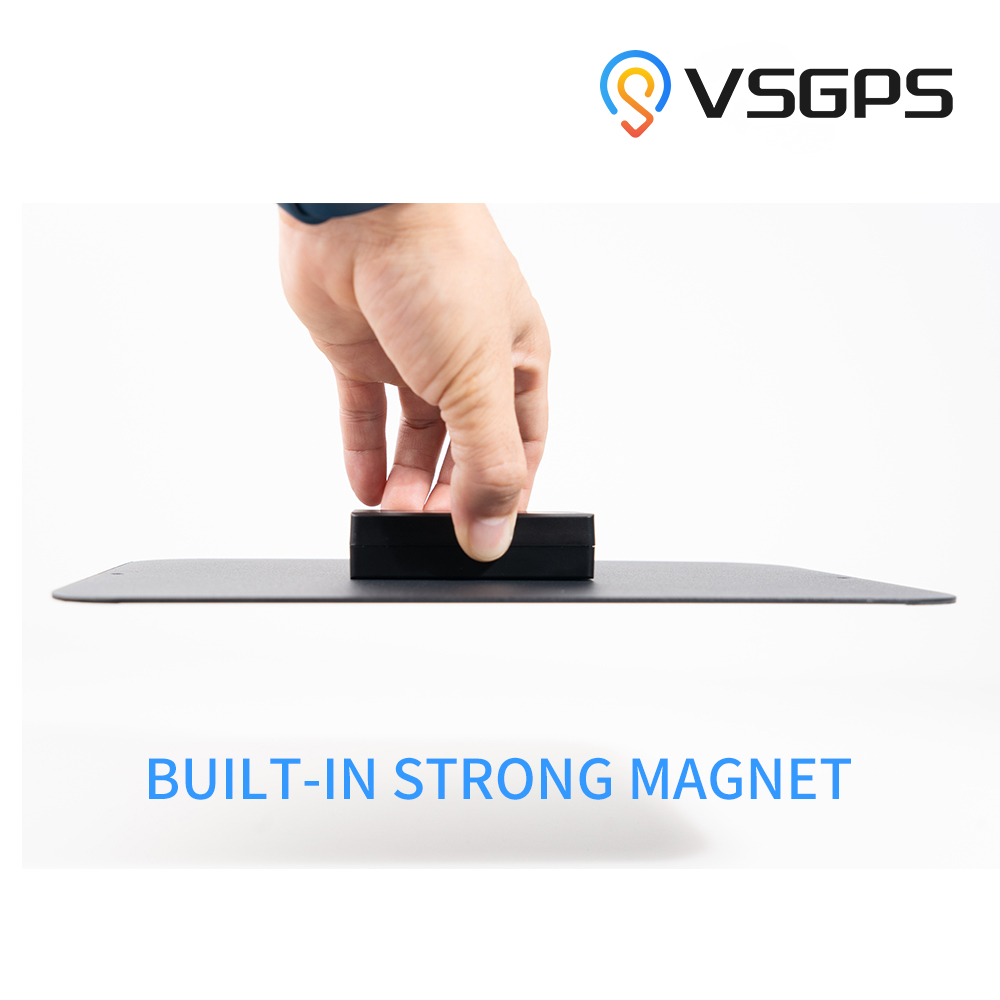

Ultra-long standby time and strong magnetic attachment.
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
4G all-network compatible in-vehicle smart terminal.
Precise positioning, up to 5 meters accuracy.
GPS/Beidou/AGPS/LBS precise positioning.
Features: vibration alarm, overspeed alarm, displacement alarm, low battery alarm, etc.
Ultra-long standby time and strong magnetic attachment.
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Electrical Characteristics
Power Supply: Battery (Rechargeable)
Operating Voltage Range: DC 3.4V – 4.5V
Operating Current: 4V/Average 55mA
Standby Current: 4V/Average 5mA
Sleep Current: 4V/Average 3mA
Built-in Battery Capacity: 5000mAh (3.7V Polymer)
Environmental Characteristics
Operating Temperature Range: -20°C – 75°C
Storage Temperature Range: -30°C – 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: A7670E/A7670SA
Communication Frequency Band: See description at the end of this article
SIM Card: Standard SIM Card
Communication Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Internal

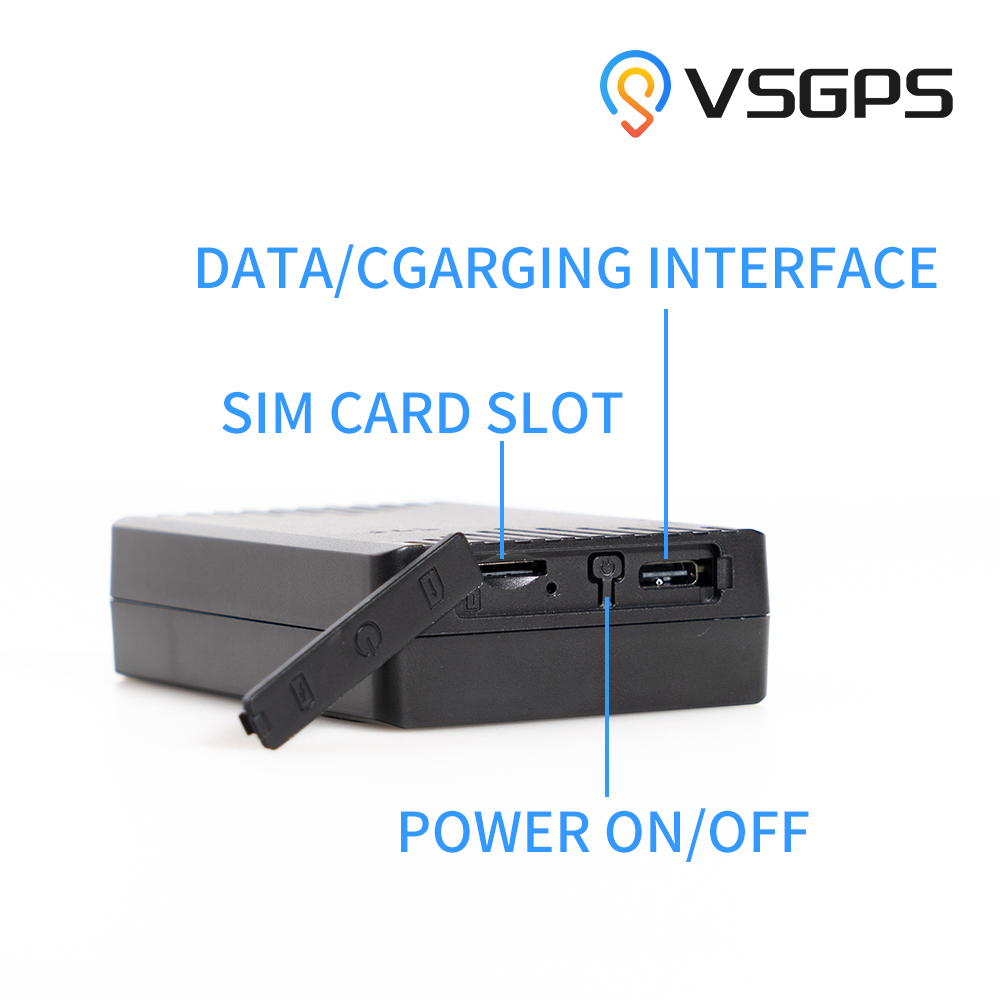

External Interface
USB: 5V Charging Port
Specifications

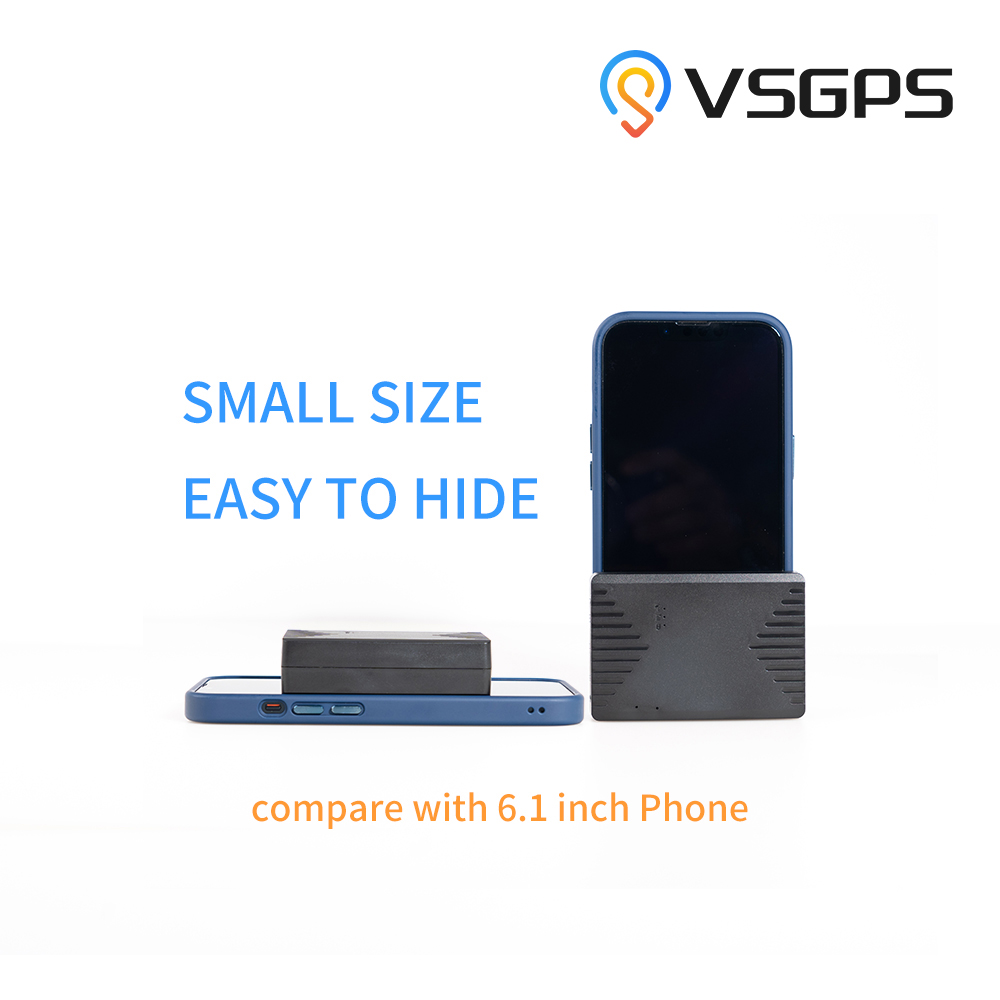

Device Dimensions: 79mm * 54mm * 21mm
Casing Material: ABS Plastic
Device Weight: 132g
Empower your fleet with Xindu CW01-CSA In-Vehicle GPS Tracker. Designed for accuracy, stability, and long battery life, it ensures seamless real-time vehicle monitoring. Contact us now for OEM or bulk orders.
High-Precision In-Vehicle Tracking Solution
The CW01-CSA in-vehicle GPS tracker solution delivers unmatched accuracy and reliability. With support for GPS, Beidou, AGPS, and LBS positioning, it achieves a positioning precision of up to 5 meters, ensuring vehicles are always under efficient and precise monitoring. It is ideal for fleet management, logistics, and automotive security applications.
