- Precise positioning, up to 5 meters.
- GPS/Beidou/LBS positioning.
- Features: 4G full network access, vibration alarm, electronic fence, low battery alarm.
- Ultra-long standby time, strong magnetic attachment
- LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
- Precise positioning, up to 5 meters.
- GPS/Beidou/LBS positioning.
- Features: 4G full network access, vibration alarm, electronic fence, low battery alarm.
- Ultra-long standby time, strong magnetic attachment
- LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Electrical Characteristics
Power Supply: Battery (Rechargeable)
Operating Voltage Range: DC 3.4V – 4.5V
Operating Current: 4V/Average 55.5mA
Standby Current: 4V/Average 5mA
Sleep Current: 4V/Average 3.1mA
Internal Battery Capacity: 6000/10000/20000 mAh (3.7V polymer battery)
Environmental Characteristics
Operating Temperature Range: -20°C – 75°C
Storage Temperature Range: -30°C – 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: EC25/EC200/UC200/7070G
Communication Frequency Band: See description at the end of this article
SIM Card: Micro SIM Card
Communication Antenna: Internal
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Cold Start Time: Average 32 seconds
Warm Start Time: Average 1 second
Sensitivity (Tracking): -162 dBM
Positioning Antenna: Built-in
External Interface
Light Sensor: Built-in light sensor

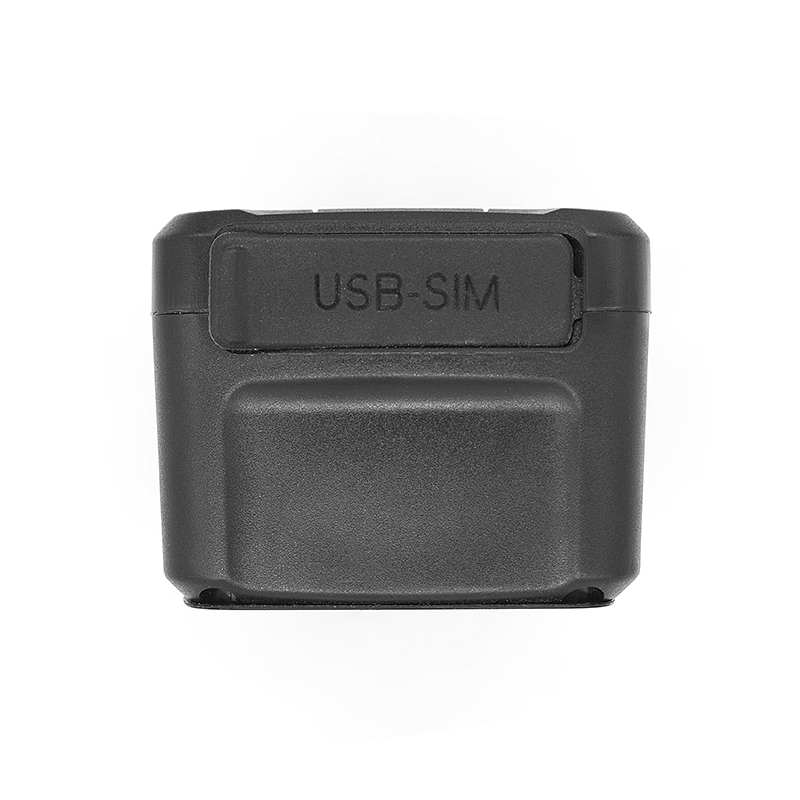

USB: 5V Charging Port
Specifications
Dimensions: 121mm * 65mm * 48mm (20,000mA)
Casing Material: ABS Plastic
IP Rating: IP65

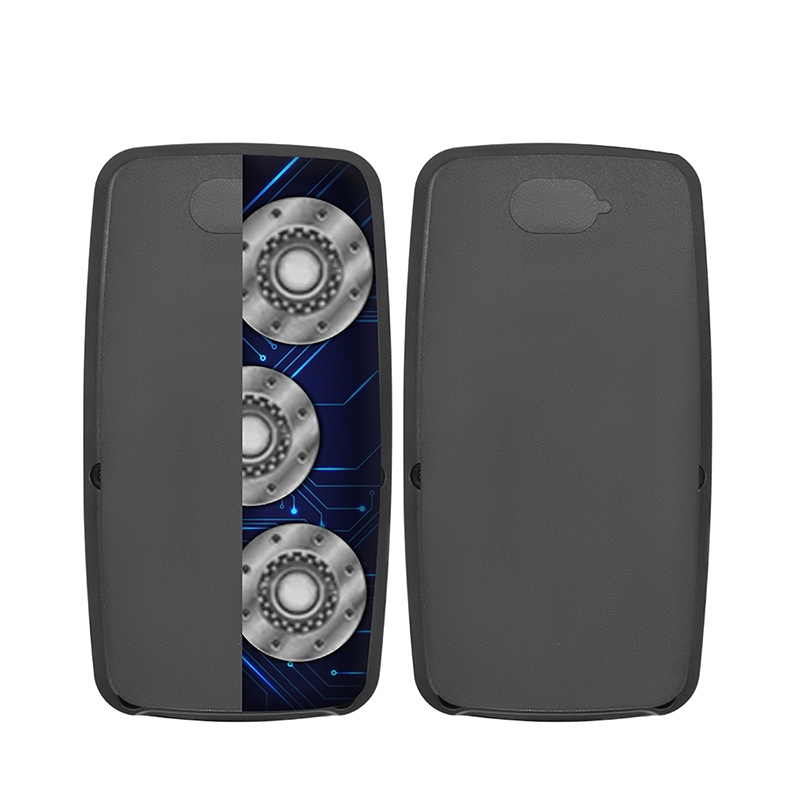

Magnet: 22mm * 4mm * 5 NdFeB permanent magnets
Main Weight: 20,000mA (472g)

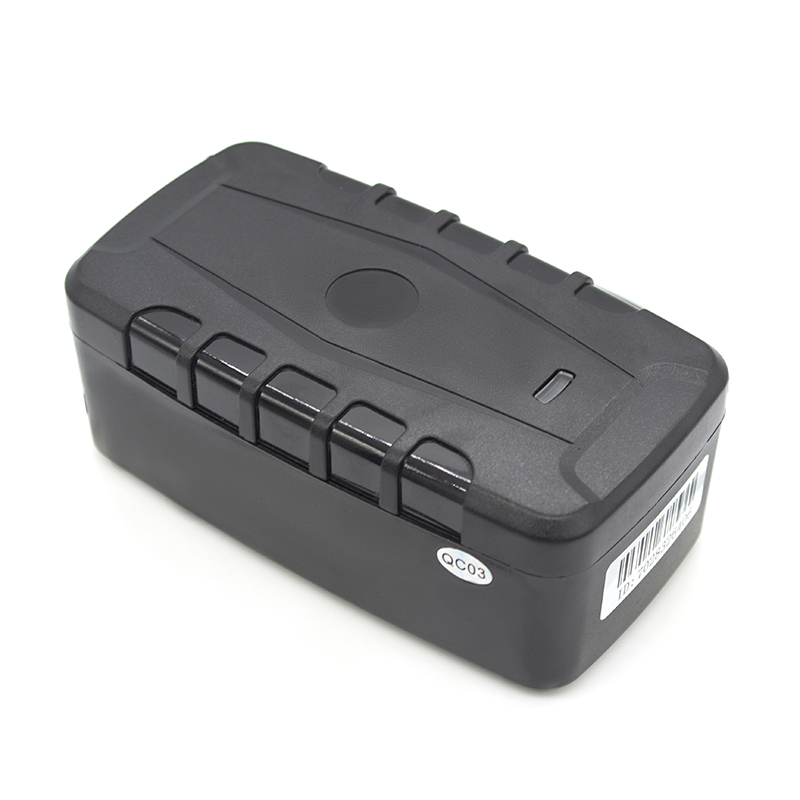

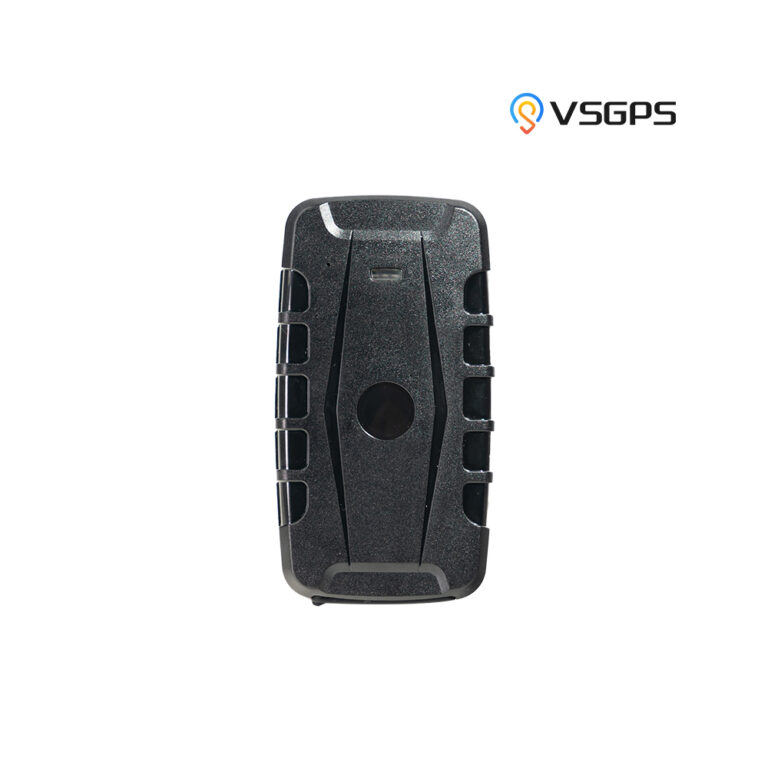

The CW06-CSA magnetic mount GPS tracker delivers high-accuracy tracking within 5 meters. It integrates GPS, Beidou, and LBS positioning technologies, ensuring continuous and precise location updates even in complex environments. The system reacts instantly with minimal delay, ideal for fleet management, logistics, and security monitoring.
4G Full Network and Smart Alerts
Equipped with 4G LTE connectivity, the tracker supports multiple frequency bands for stable performance worldwide. It includes vibration alerts, an electronic fence, and low battery notifications, ensuring users stay informed of any unusual movement or power drop. With these smart alarms, businesses can manage assets proactively and securely.
