Precise positioning, with an accuracy of up to 5 meters.
Triple-mode positioning: GPS, Beidou, and LBS.
Features include: removal alarm, overspeed alarm, displacement alarm, vibration alarm, and low-battery alarm.
Built-in 10,000mAh rechargeable battery. Strong magnetic attachment to metal surfaces.
GSM:B2/B3/B5/B8
Precise positioning, with an accuracy of up to 5 meters.
Triple-mode positioning: GPS, Beidou, and LBS.
Features include: removal alarm, overspeed alarm, displacement alarm, vibration alarm, and low-battery alarm.
Built-in 10,000mAh rechargeable battery. Strong magnetic attachment to metal surfaces.
GSM:B2/B3/B5/B8
Electrical Characteristics
Power Supply: Battery (Rechargeable)
Operating Voltage Range: DC 3.4V – 4.5V
Operating Current: 4V/Average 35mA
Sleep Current: 4V/<5mA
Built-in Battery Capacity: 10,000 mAh (3.7V polymer battery)
Environmental Characteristics
Operating Temperature Range: -20°C – 75°C
Storage Temperature Range: -30°C – 80°C
Operating Humidity Range: 10%-85% RH (non-condensing)
Communication Characteristics
Communication Module Brand/Chip Model: QUECTEL MC25
Communication Frequency Band: 850/900/1800/1900MHz
SIM Card: Micro SIM Card
Communication Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Positioning Antenna: Built-in
External Interface

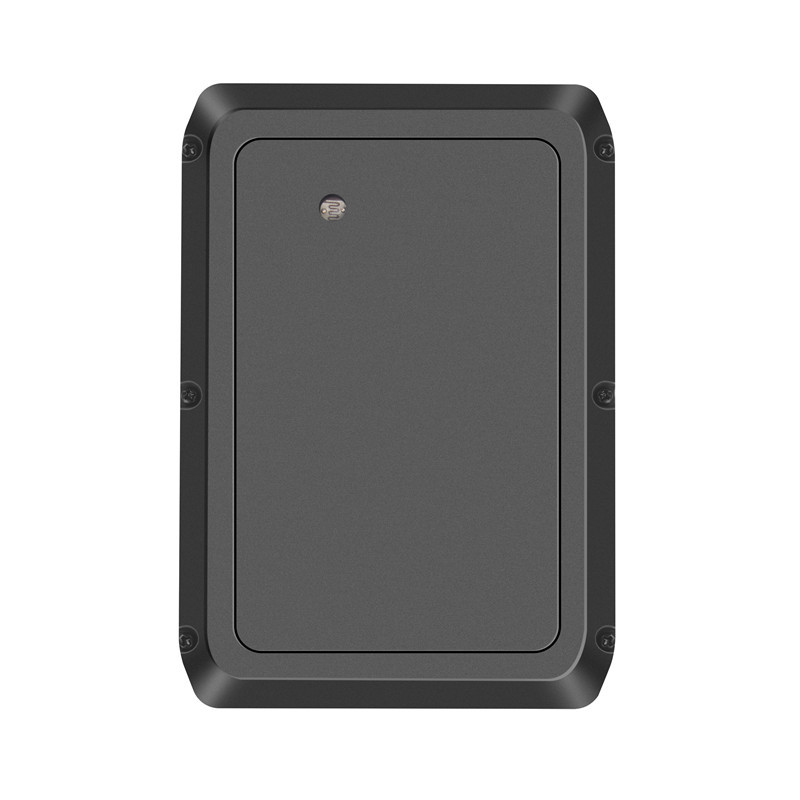

Light Sensor: Built-in light sensor

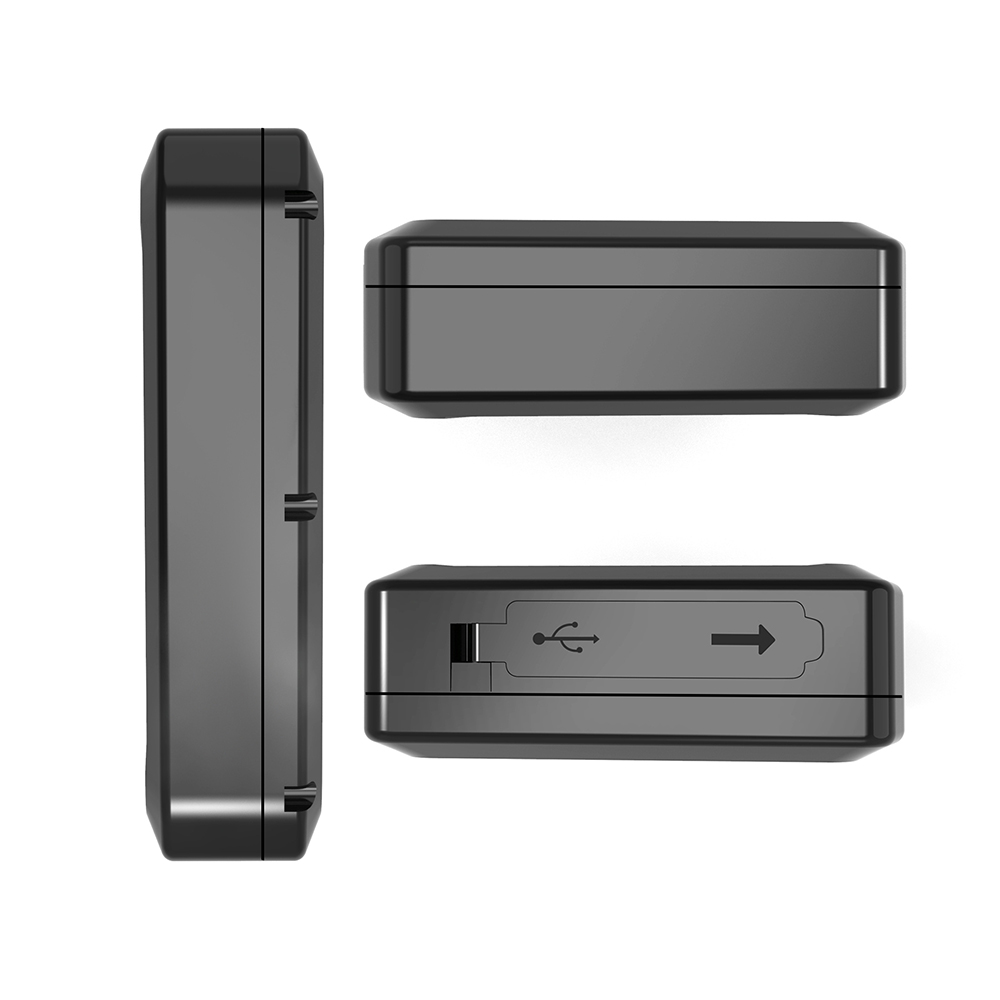

USB: 5V charging port
Specifications
Device Dimensions (L/W/H): 112mm * 78mm * 27mm
Casing Material: ABS Plastic
IP Rating: IP67
Magnets: 6 NdFeB permanent magnets (18mm * 2.8mm)
Device Weight: 300.5g
Xindu’s fleet vehicle GPS tracker devices are designed for logistics fleets, rental vehicles, and corporate car systems. With strong durability, intelligent features, and customizable OEM options, it empowers businesses to reduce loss, improve efficiency, and strengthen operational control.
