Supports 4G full network access.
Accurate GPS/Beidou/AGPS/LBS positioning.
Voltage design supports 9V – 45V.
High-sensitivity GPS/BDS dual-satellite positioning module, anti-interference ceramic antenna, more stable satellite search signal, and supports AGPS fast positioning and tracking.
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Supports 4G full network access.
Accurate GPS/Beidou/AGPS/LBS positioning.
Voltage design supports 9V – 45V.
High-sensitivity GPS/BDS dual-satellite positioning module, anti-interference ceramic antenna, more stable satellite search signal, and supports AGPS fast positioning and tracking.
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V-45V
Operating Current: 12V/40mA
Sleep Current: 12V/10mA
Internal Battery Capacity: 180 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C to 75°C
Storage Temperature Range: -30°C to 80°C
Operating Humidity Range: 5%-85% RH (non-condensing)
Communication Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Positioning Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Internal
External Interface
USB: 5V Charging Port
Specifications

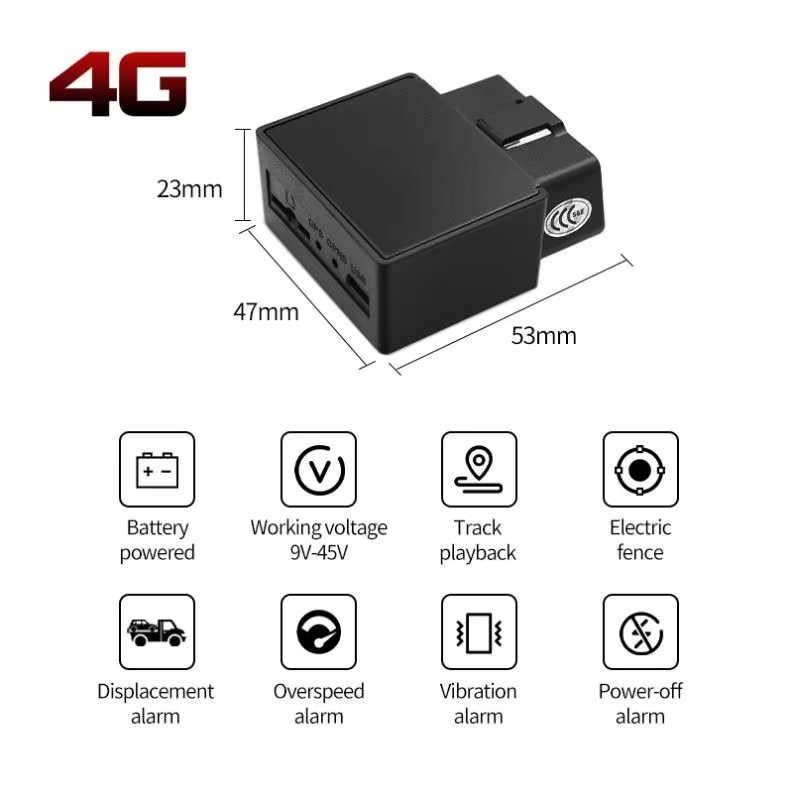

Dimensions: 53mm * 47mm * 23mm
Casing Material: ABS Plastic
Main Unit Weight: 45g

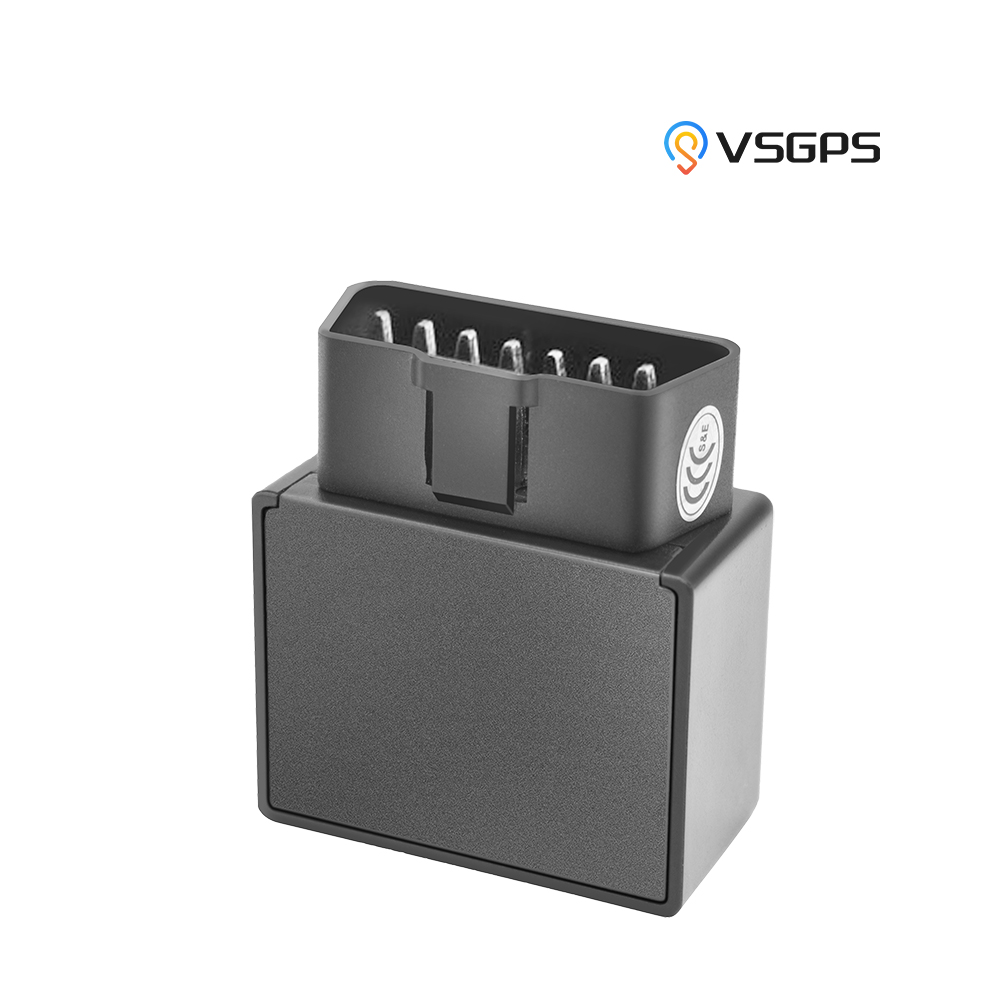

The CW08-SA Vehicle OBD Tracker combines GPS and Beidou systems for superior tracking accuracy. Its high-sensitivity AT6558R chip ensures stable and fast signal reception even in complex environments. With AGPS support, positioning time is reduced, allowing immediate location tracking and data updates.
Upgrade your fleet tracking efficiency with the CW08-SA Vehicle OBD Tracker. Designed for 4G full network connectivity, it ensures accurate real-time GPS/Beidou positioning and reliable performance across vehicles. Contact Xindu today for OEM and bulk orders!
APPLICATIONS
Racing Tracking
Car Locating
Fleet Management
