1. 4G all-network in-vehicle smart terminal.
2. Precise positioning, with an accuracy of up to 5 meters.
3. GPS + Beidou + LBS triple-mode positioning.
4. Features: removal alarm, anti-detection, timed operation, real-time tracking, etc.
5. Ultra-long standby time of three years, built-in 4200mAh large-capacity battery.
6. Built-in strong magnet.
1. 4G all-network in-vehicle smart terminal.
2. Precise positioning, with an accuracy of up to 5 meters.
3. GPS + Beidou + LBS triple-mode positioning.
4. Features: removal alarm, anti-detection, timed operation, real-time tracking, etc.
5. Ultra-long standby time of three years, built-in 4200mAh large-capacity battery.
6. Built-in strong magnet.
Electrical Characteristics
Power Supply: Battery
Operating Voltage Range: DC 9V-45V
Operating Current: 12V/40mA
Sleep Current: 12V/10mA
Internal Battery Capacity: 180 mAh (3.7V polymer battery) (Optional)
Environmental Characteristics
Operating Temperature Range: -20°C to 75°C
Storage Temperature Range: -30°C to 80°C
Operating Humidity Range: 5%-85% RH (non-condensing)
Communication Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Positioning Antenna: Built-in
GPS/BD Positioning Characteristics
Positioning Module Brand/Chip Model: Zhongkewei AT6558R
Positioning Method: Beidou + GPS
Cold Start Time: Average 32 seconds
Hot Start Time: Average 1 second
Sensitivity (Tracking): -162 dBm
Location Antenna: Internal
External Interface
USB: 5V Charging Port
Specifications
Dimensions: 53mm * 47mm * 23mm
Casing Material: ABS Plastic
Main Unit Weight: 45g

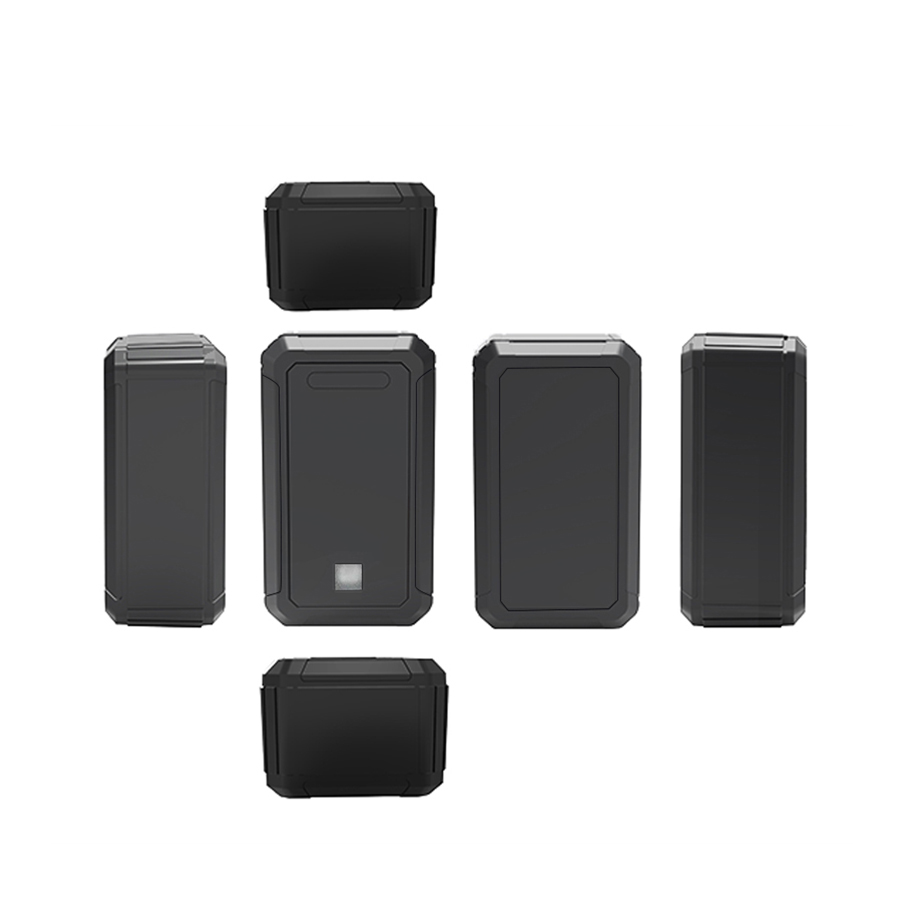

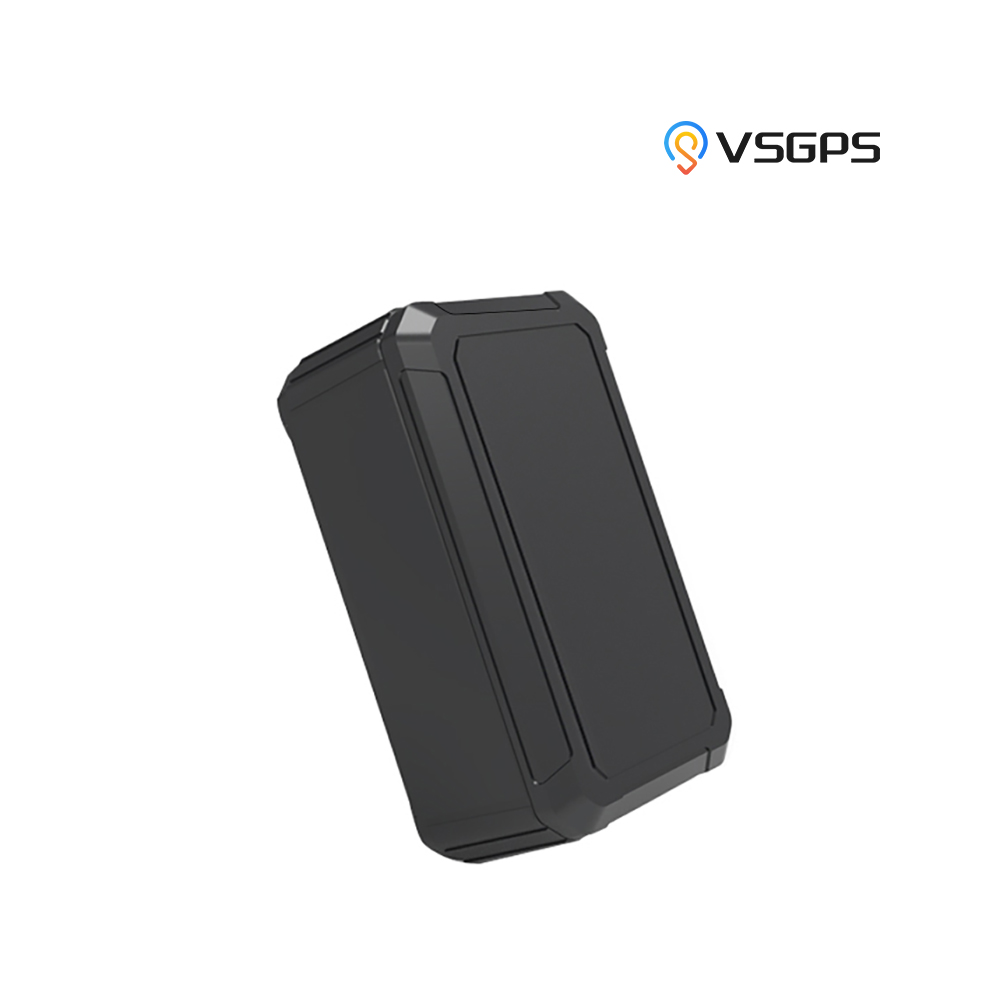

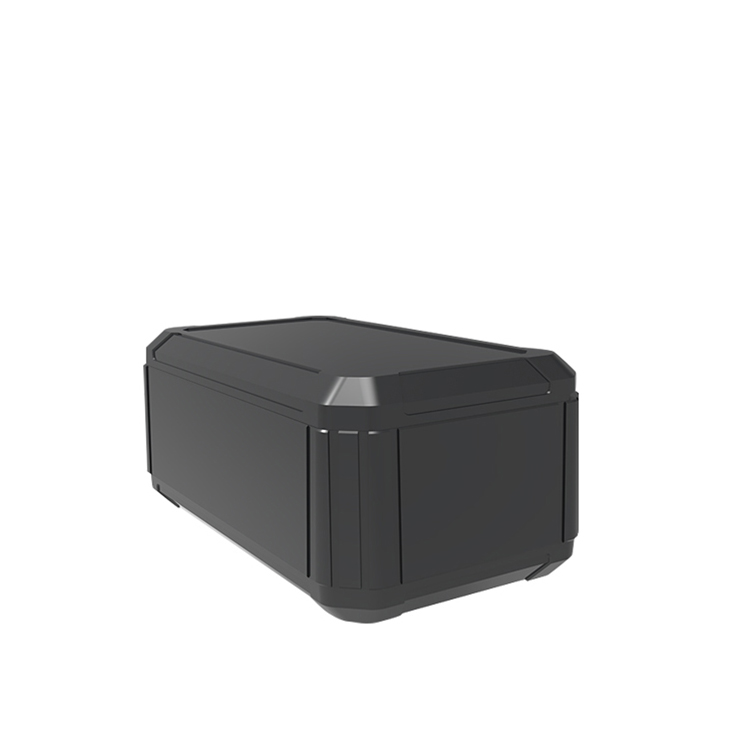

The CW21 Battery GPS Tracker is a powerful 4G smart tracking terminal designed for vehicles and asset management. It supports all-network coverage, ensuring reliable data transmission even in remote areas. Built with a high-performance positioning module, it guarantees real-time, precise tracking for commercial fleets and logistics businesses.
Stay in control with the CW21 Battery GPS Tracker from Xindu. Designed for vehicles and asset tracking, it delivers accurate positioning, long battery life, and real-time monitoring. Contact us for bulk customization and OEM orders today!
APPLICATIONS
Fleet Management
Motorcycle Tracking
Car Locating
